ANL vs. MRBF Fuses: Marine & RV Battery Circuit Protection Selection Guide

Why the Fuse Format You Choose Matters

A battery fuse is the one component standing between a short circuit and a fire. On a 12V, 24V or 48V DC system, a fault on the main feed can pull thousands of amps in milliseconds — far more than the cable, the terminals or the battery itself can survive. The fuse is what interrupts that current before anything melts, and the format you select decides how easily you can install it, inspect it and service it.

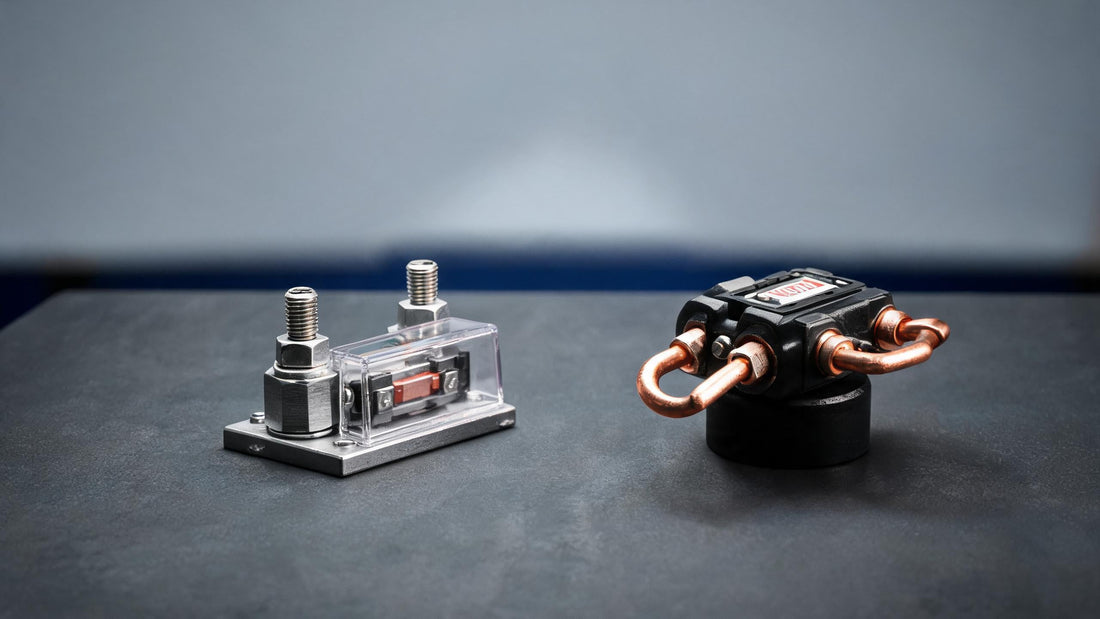

Two formats dominate marine, RV and off-grid installations: the MRBF (Marine Rated Battery Fuse) and the ANL fuse holder. Both protect the same thing. They are engineered for very different physical constraints, and choosing between them comes down to mounting space, current range and how the assembly will be inspected.

Most reputable installs are guided by recognised practice — ABYC E-11 for marine DC systems, equivalent RV and automotive wiring standards, and the manufacturer's own rating limits. Whichever format you pick, it must be rated for the system voltage, mounted close to the power source, and sized to the ampacity of the cable it protects.

What Is an MRBF Fuse?

An MRBF — Marine Rated Battery Fuse — is a compact block fuse designed to bolt directly onto a battery post or stud, usually M8 or M10. There is no separate holder and no extra cable run: the fuse sits at the source of power, which is exactly where a main fuse belongs.

Key features

• Direct post mounting — mounts straight onto the battery terminal stud, minimising the unfused cable length.
• Compact footprint — a single block occupies far less space than an inline holder, which matters in tight battery boxes and engine compartments.
• Ignition-protected construction — MRBF fuses are typically designed to be ignition protected, allowing installation where a spark could ignite fuel vapour.
• Typical range 30A – 300A, with voltage ratings in the 32V – 58V DC class depending on the exact part.

Where it fits

• Battery boxes and engine compartments where space is measured in millimetres.
• Marine main and accessory feeds requiring ignition-protected protection.
• RV and campervan battery banks where the fuse should be visible and serviceable at the post.

What Is an ANL Fuse Holder?

An ANL fuse holder is a bolt-down, inline assembly. The ANL element is a strip fuse bolted between two studs inside a holder, and the holder is mounted to a panel, bulkhead or battery box — then the cable is run through it.

Key features

• High current capacity — commonly rated from about 80A up to 500A, covering main feeds on inverters, winches, trolling motors and large solar arrays.
• Inline mounting — the holder bolts to a flat surface; the cable terminates on its studs with standard ring terminals.
• Clear inspection — many holders use a transparent body or removable cover so the element can be checked without dismantling the circuit.
• Typical voltage ratings around 32V DC, some parts higher — always confirm the part's own rating for 48V systems.

Where it fits

• Inverter and large load feeds where current exceeds what a post-mount fuse can carry.
• Panel and bulkhead mounting where there is room for a holder but no convenient battery-post stud.
• High-amp off-grid solar combining and main disconnect circuits.

Comparison Table: MRBF vs. ANL

Criterion	MRBF Terminal Fuse	ANL Fuse Holder
Amperage range	Typically 30A – 300A	Typically 80A – 500A
Voltage rating	32V – 58V DC class	~32V DC typical (verify for 48V)
Mounting space	Minimal — mounts on the battery post itself	Requires panel/bulkhead space for the holder
Mounting method	Direct to M8 / M10 battery stud	Bolt-down holder, inline on the cable
Cost per position	Higher per unit — integrated block design	Lower per amp at high current; requires separate holder
Ignition protection	Typically ignition protected	Not ignition protected as standard; enclosure helps
Inspection	Fuse visible at the post, quick to swap	Depends on holder; clear/removable covers help
Best for	Main + accessory feeds in tight, ignition-sensitive spaces	Very high-current main feeds and panel-mounted circuits

How to Choose for RV / Marine / Solar Installers

For RV and campervan builds — battery boxes are tight and often sit near fuel or gas systems. MRBF keeps the fuse at the post, shortens the unfused run, and gives you an ignition-protected part where it counts. Step up to an ANL holder only when the main feed exceeds the MRBF's rating, typically on a large inverter circuit.

For marine installations — install to ABYC E-11 practice: fuse within a short distance of the battery, protect every ungrounded main conductor, and use ignition-protected devices in engine spaces. MRBF blocks suit main and branch feeds; ANL holders suit high-current inverter and thruster circuits above post-mount limits.

For off-grid solar — the battery-to-inverter and battery-to-charge-controller feeds are the high-current paths. Size the fuse to the cable ampacity, not the load: a fuse below the cable's capacity will nuisance-trip, and one above it will not protect the cable.

Sizing rule of thumb: choose a fuse rating at or just below the cable's ampacity, and at least 20–30% above the expected continuous load. Never fuse above the ampacity of the cable being protected, and always confirm the fuse's voltage rating covers your system.

Why Synmelo DC Components

Browse the full range of ANL and MRBF fuse holders and every Synmelo part is built for the installers who have to stand behind the work:

• Pure copper, plated contacts — silver- and nickel-plated surfaces keep resistance and voltage drop low, so the rating on the label is the rating at the stud.
• Flame-retardant housings — UL-94 V0 materials with wide, heat-shedding geometry for sustained high-current load.
• Direct factory supply — partner manufacturers in Yueqing, Zhejiang, China's low-voltage electrical cluster, with engineering support from our Jinan base.
• Bulk, OEM and ODM support — custom stud sizes, cable assemblies, laser engraving and private-label packaging, on order quantities that suit distributors as well as container buyers.
• 1-Year Comprehensive Warranty and fast sample dispatch, with FOB and EXW terms for export orders.

Get the Wholesale Catalogue or Request a Bulk Quote

Specifying a system, or stocking DC protection for resale? Download our wholesale product catalogue for full amperage, voltage and stud options across the ANL, MRBF, quick-connector and busbar ranges — or send us your drawing, bill of materials or target quantity and we will quote against it.

Email info@synmelo.com — we reply within one business day.

Always install DC protection to the applicable standard (e.g. ABYC E-11 for marine) and fuse to the ampacity of the cable being protected. Ratings quoted are typical class values — confirm the specific part's rating before specifying.
