BUSBAR

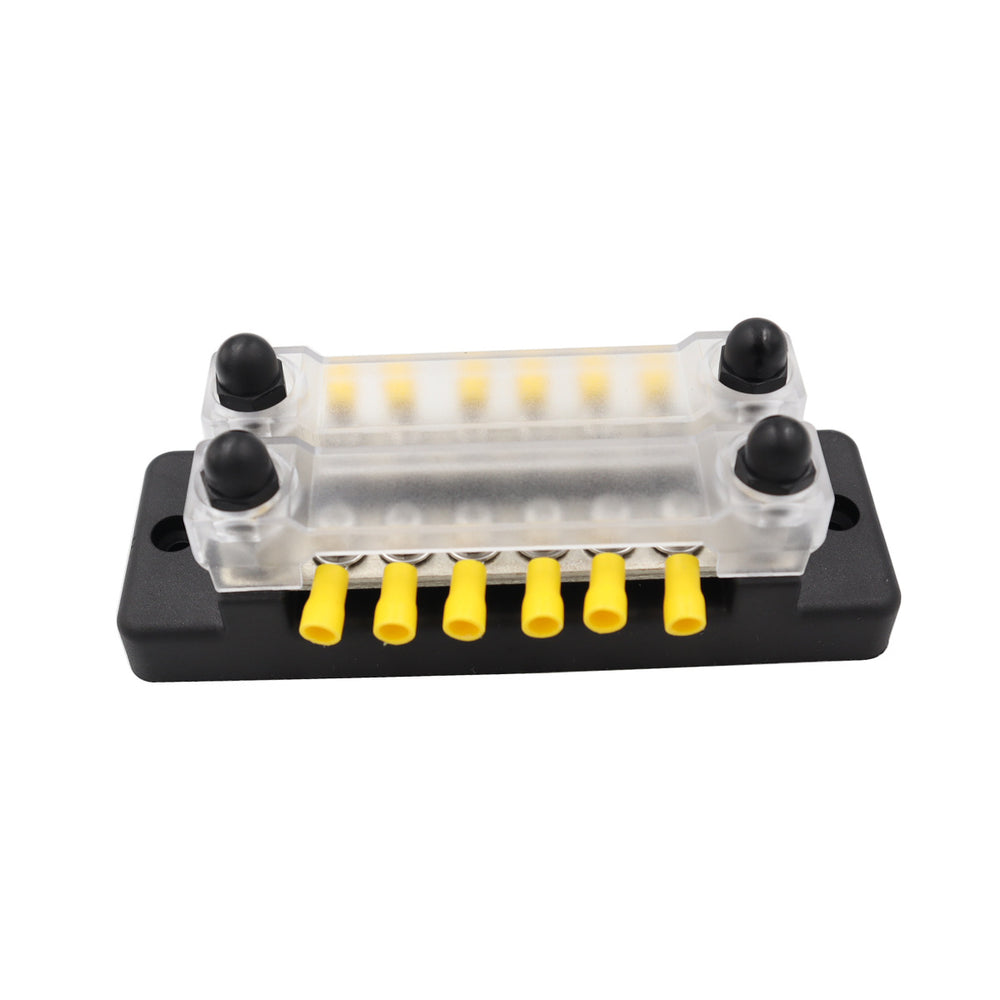

150A 6-Terminal Double Row Bus Bar
- · 150A continuous / 250A peak housing rating
- · 6 × M8 stainless steel studs, double row
- · 48VDC / 300VAC rated housing
$2.69
ANL · MRBF · BUSBARS · ANDERSON CONNECTORS
Engineered for High-Current DC Distribution.
Professional-grade ANL & MRBF fuse blocks, high-conductivity busbars, and Anderson-compatible quick-connect harnesses built for marine, RV, and off-grid solar systems.
- Ships in 24h
- UL-94 V0
- CE / RoHS
- Low MOQ & OEM Stud Sizes
Why Partner With Synmelo
Component-level hardware, specified to rating and supplied to schedule.
YUEQING ELECTRICAL CORE
Direct partnership with top-tier industrial manufacturing clusters, ensuring stringent quality control and competitive factory pricing.
HIGH-CONDUCTIVITY ENGINEERING
Pure copper construction with silver/nickel plating, engineered to minimize voltage drop under extreme thermal loads.
FLEXIBLE B2B & OEM EXECUTION
Custom stud sizing, wire harness assembly, and private laser branding supported by robust FOB/EXW logistics.
01 / PRODUCTS
Two parts, one clean system
FUSE HOLDER

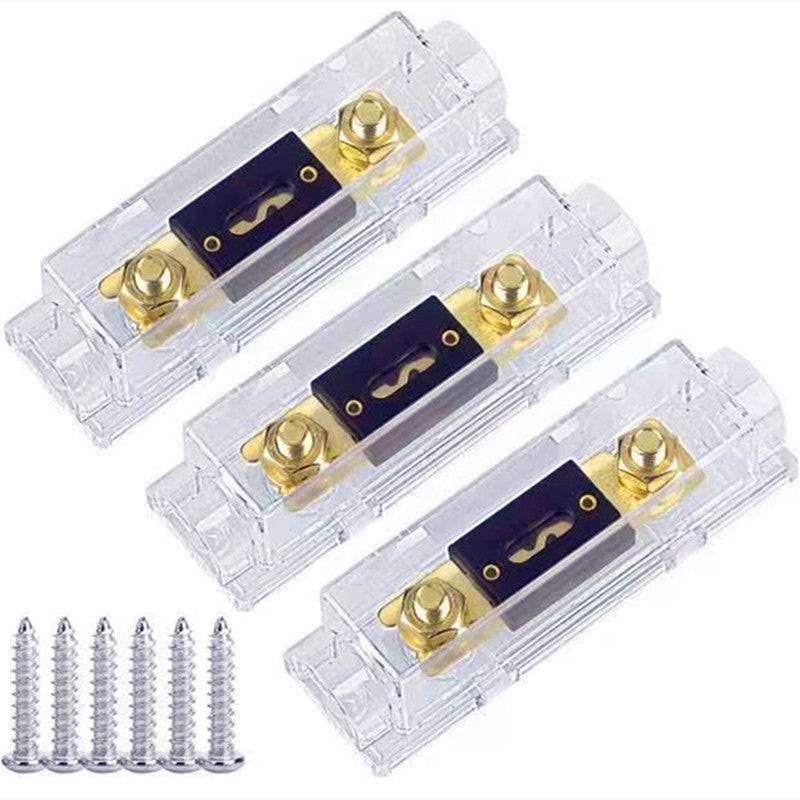

ANL Fuse Holder Kit — 80A to 300A
- · Clear acrylic body, pure copper terminals
- · 3-pack with fuses included
- · Marine-grade M8 stainless steel studs
$4.48
02 / SPECIFICATION
Specification, side by side
| Specification | Bus Bar — 6 Terminal | ANL Fuse Holder |
|---|---|---|
| Rated Current | 150A | 80A–300A |
| Housing Rating | 250A · 48VDC / 300VAC | 32V DC |
| Terminals / Studs | 6 × M8 stainless steel | 2 × M8 stainless steel |
| Body Material | High-temp reinforced plastic | Clear acrylic |
| Terminal Material | Tinned / pure copper | Tinned / pure copper |
| Mounting | Surface mount, 4 holes | Self-tapping screws included |
| Typical Use | Van / RV 12–48V distribution | Main fuse, trolling motor, inverter feed |
| Options | Red · Black · Pair | 80A · 100A · 150A · 200A · 250A · 300A |
Ratings are continuous-duty. Always fuse to the ampacity of the cable being protected.
03 / APPLICATIONS
Where it goes to work

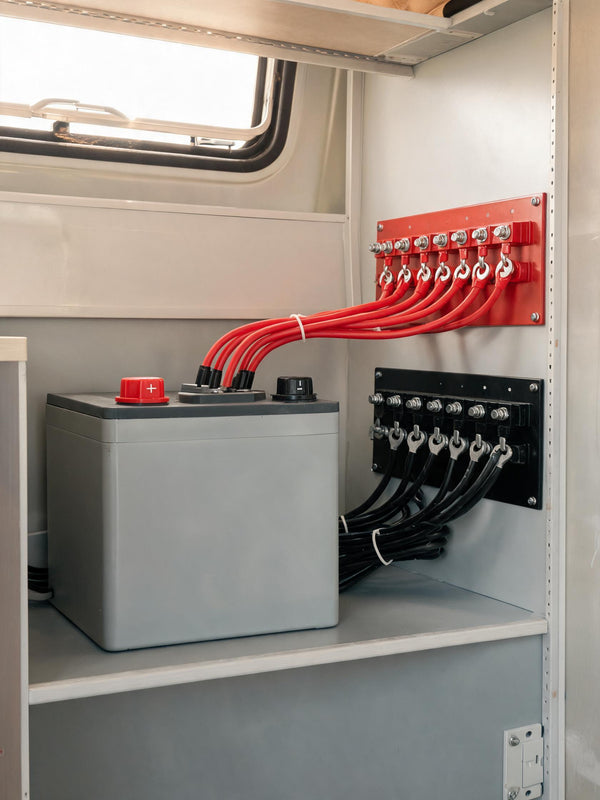

VAN & CAMPERVAN BUILDS
Clean 12V distribution for lights, fridge, and inverter circuits.

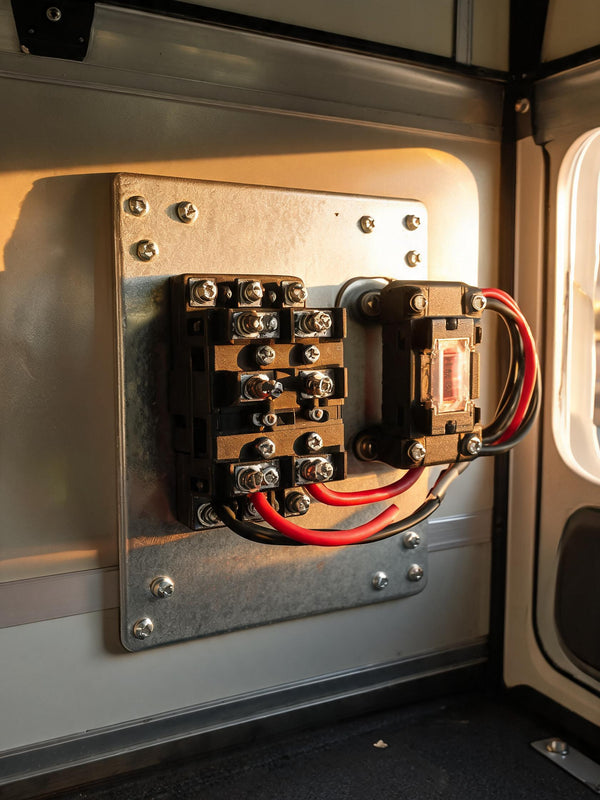

RVs & TRAILERS
Tidy battery-bank junctions and main fuse protection.

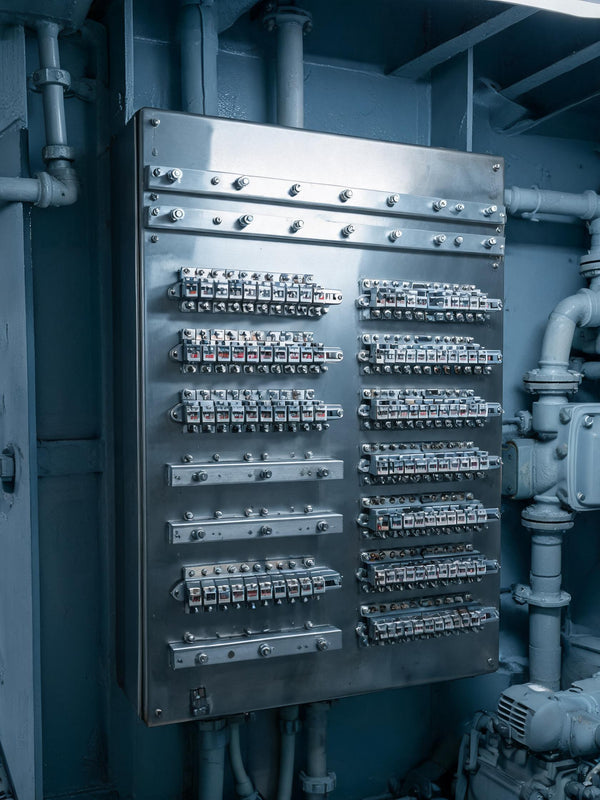

BOATS & MARINE
Corrosion-resistant blocks for wet, high-vibration environments.

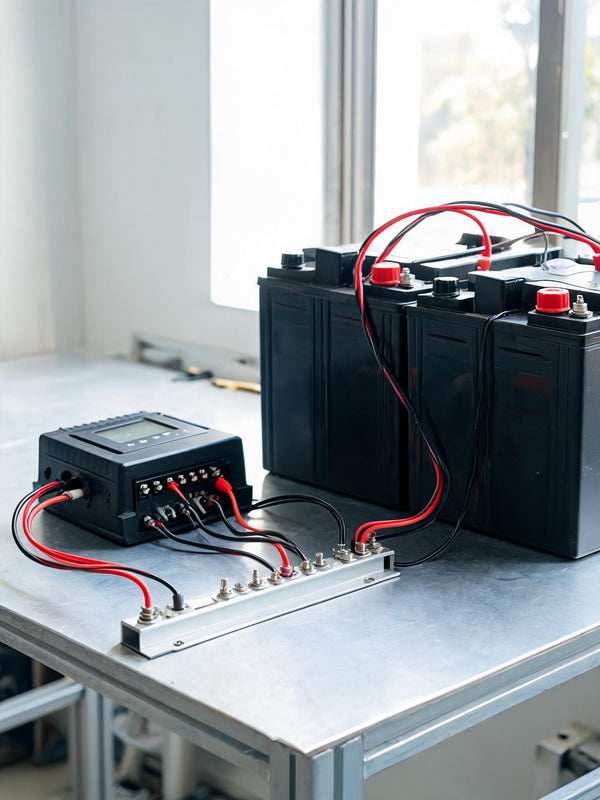

OFF-GRID SOLAR
Safe combiner and battery connections for solar arrays.
04 / FAQ
Spec questions, answered
What current rating do I need?
Size for continuous load, not peak. A 150A bus bar covers most van and RV distribution panels; ANL fuses handle main feeds at 80A–300A. Choose a rating 20–30% above your expected continuous draw — and never above the ampacity of the cable it protects.
Can I use these on a 48V system?
Yes — the bus bar housing is rated 48VDC / 300VAC.
What are the terminals and studs made of?
High-conductivity tinned/pure copper conductors with marine-grade M8/M10 stainless steel studs for corrosion resistance.
Will they fit M8 and M10 lugs?
Yes — marine-grade M8/M10 stainless steel studs take standard ring terminals.
Do the ANL holders come with fuses?
The kit ships as a 3-pack with fuses in the selected rating.
Can I mount them in a wet location?
They are designed for engine bays and marine compartments; seal and fuse to ABYC / ISO practice.
Do you offer bulk pricing?
Yes — contact us for dealer and fleet pricing.
What is the warranty / returns?
Refer to our Shipping & Returns policy; 30-day returns on unused items.
BULK & TRADE
Building a fleet, a boatyard, or a product line?
Ask for volume pricing, spec sheets, and technical support. We reply within one business day.
MOQ 50 pcs mixed carton · samples welcome
